Scroll down for more information

directions on using the classroom system

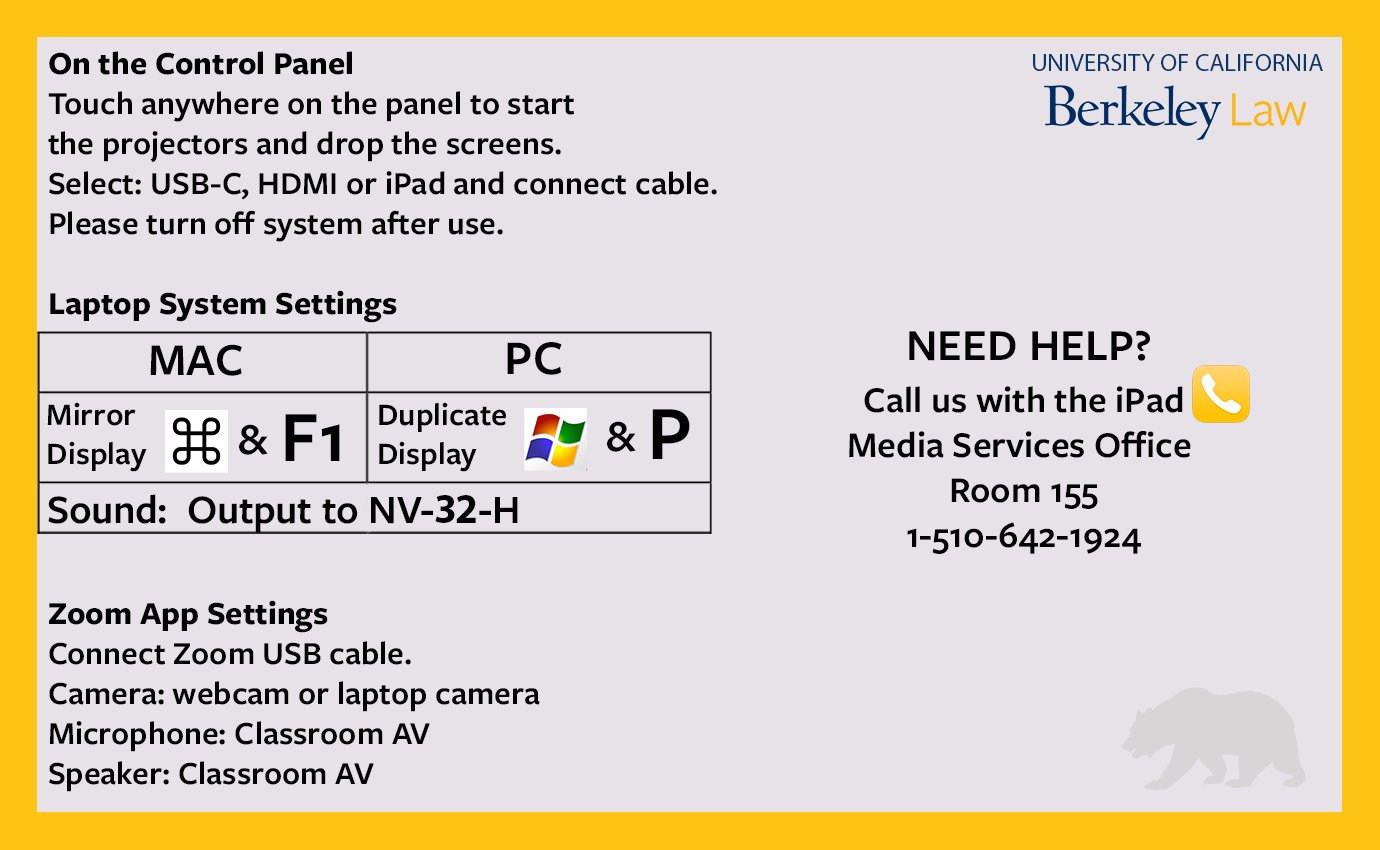

Getting Started on the Classroom Equipment

On the Control Panel touch anywhere on the panel to start the projectors and drop the screens.

Select: USB-C, HDMI or iPad and connect cable.

To Mirror or Duplicate your desktop to the projection screen:

  • Go to Laptop System Settings:
  • Mirror or Duplicate your desktop to the projection screen
  • Shortcuts:
    • Mac – hold Command button and press F1
    • PC – hold Windows button and press P

To have your program audio come out of the room speakers:

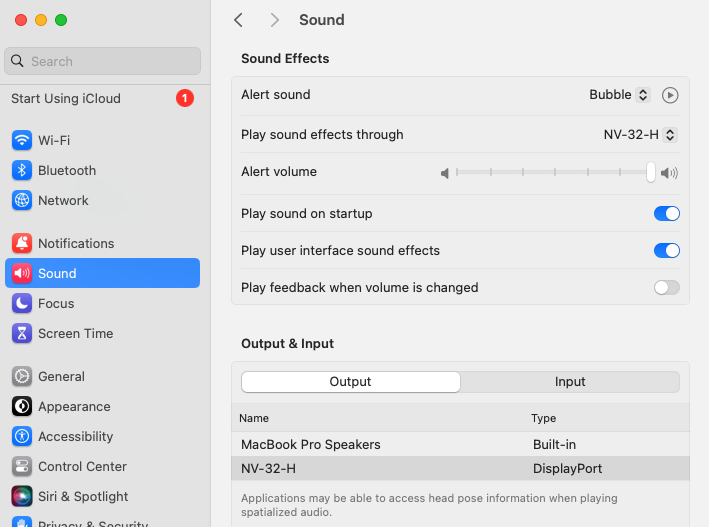

Go to Laptop System Settings > Sound > Output and Select NV-32-H

Zoom (or any web video software) App Settings

Connect Zoom USB cable.

Camera: Webcam or laptop camera

Microphone: Classroom AV

Speaker: Classroom AV



Please turn off the system after use – using the power icon on the bottom right of the page on the control panel.

For more information or to schedule a training email: media @ law.berkeley.edu

Need immediate assistance?

Call us with the iPad with the phone icon in the toolbar or

Call the office 510 | 642 | 1924

Media Services Office Law Room 155

Guide for Remote Video Meetings (using Zoom)

Step 1: Create Zoom link

You can access your free professional Zoom account by signing in at berkeley.zoom.us with your CalNet ID.

  • Media Services does not provide Zoom links for your class or event.
  • Please bring your laptop with your up-to-date Zoom client installed to the classroom.
  • Be prepared to log into your Zoom account using your CalNet ID and cell phone in order to use two-factor authentication.

Step 2: Set up Hardware

Once in the classroom – touch the control panel to turn on the projectors and drop the screens.

  • On the control panel – Select USB-C or HDMI (iPads cannot be used with Classroom AV Zoom cable)
  • Connect the laptop to the system’s projector via USB-C or HDMI cable

photo of USB-C plug into a laptop

  • Connect Zoom Microphone/Speaker cable

photo of Zoom cable and USB-C plugged into laptop

  • Mirror or Duplicate your desktop to the projection screen

For Mac OS:

Navigate to the Apple dropdown menu on the top left corner of the desktop.

Select  > System Settings > Displays >  Use as > Mirror for NV-32-H – this is the classroom projector

picture of system settings on a mac

picture of system display settings on a mac

For Windows:

Navigate to the Windows button on the bottom left of the desktop.

Select > Settings > Display > Under Multiple displays > Duplicate these displays

picture of system settings on PC        photo of display settings for PC laptop

Step 3: Sign into Zoom

Go to berkeley.zoom.us and sign in with your Calnet ID.

Start your meeting.

photo of Zoom sign in window

Step 4: Select Camera, Microphone and Speaker Options

If using the room’s microphones (no Zoom camera available) – in your Zoom application settings:

Select a Camera > Webcam or laptop camera

Select a Microphone > Classroom AV – for microphones provided in the room

Select a Speaker > Classroom AV – for the sound system provided in the room

picture of zoom audio settings

If using the Jabra webcam – in your Zoom application settings:

Select a Camera > Jabra PanaCast 50 – for the webcam

Select a Microphone > Jabra PanaCast 50

Select a Speaker > NV-32-H – for the sound system provided in the room or Jabra PanaCast 50 to come out of the Jabra.



Step 5: Test Audio Settings

Click the audio submenu next to the Microphone icon (Mute)

Select > Test Speaker and Microphone.  This will ensure that all of the connections are working properly.

picture of zoom test audio settings

If you are on a Mac you can adjust the volume on Zoom or on the program volume on the control panel touch screen.
